Wire Soldering Commutator Fusing Machine Ultrasonic Wave Metal Welding

Large Image : Wire Soldering Commutator Fusing Machine Ultrasonic Wave Metal Welding Get Best Price

Product Details:

Place of Origin:	Welding no heat
Brand Name:	Wind Automation
Certification:	Custom made machine for many developed and developing countries
Model Number:	hot staking stator winding, armature winding, welding

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD
Packaging Details:	Polywood case
Delivery Time:	Armature hot staking machine
Payment Terms:	weld and fuse the commutator of motor of the power tool,mixer
Supply Ability:	DC power supply starter motor of the automobile.

Contact Now

Detailed Product Description

Heat Or No Heat:	Car Stator Welding Device Fusing Machine No Heat	Workpiece:	Stator Terminal Wire, Other Metal Material
Radial Magnetization:	Magnetizing The Magnetic Strip Of The Magnet In The Motor	Ultrasonic Wave:	Ultraweld L20 Type With Different Feeding Device
Welding Machine HS Code:	8468100000	After Sales:	Engineers Available To Service Machinery Overseas

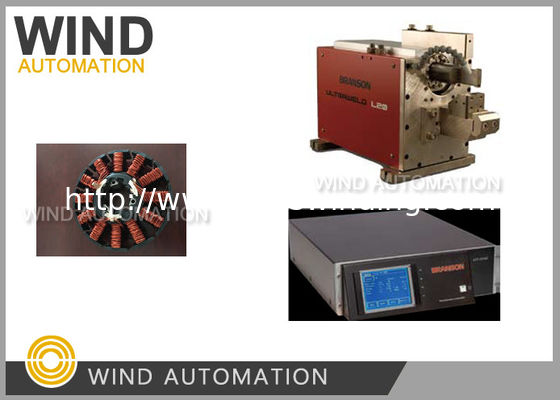

Ultrasonic Wave Metal Welding For Car Stator Wire Soldering Fusing Machine

(1) Application

Metal material

(2) Advantages

1. Welding resistance is 1/3 of the common welding or revet press method

2. No heat hurt the workpiece surface

(3) Parameter

Bracket	L1A00A55(63mm) L1A00A56(100mm)
Length	652.2mm (25.5 in)
Height	329mm(13.0 in) Max Up 281mm(11.0 in) Max Down
Width	Bracket main body203mm(8.0 in) Base 262mm(10.3in)
Weight	27.1KGS(60lbs)
Stroke	48mm(1.9in)
Tooling strech length	145mm(5.7in)

(4) Feature

Equipment technical parameters:

rated power: 4KW

resonance frequency: 20KHz + 300Hz

amplitude adjustable range: 1um~ maximum amplitude

adjustable range of pressure: 5 ~ 70psi

welding time: 0.5+0.1s

welding cycle: 1.8+0.3s

outline size (unit: mm): 374 (L) X262 (W) X329 (H)

device weight: 23Kg

cylinder stroke: 48mm

parameters of ultrasonic generator:

operation interface: touch screen

power: 4KW

outline size (unit: mm):564 (L) X444 (W) X142 (H)

weight: 16Kg

rated current: 22A

rated voltage: 220V (customers provide 220V + 10%~7% power supply,

and no voltage regulator is needed in this voltage range).

other parameters:

tracheal interface diameter: dry and clean compressed air 0.6MPa. The diameter of the interface is 8mm

power plug specification: large three-circle standard plug

communication interface form: RS232/RS485

PLC butt diagram:

specification: double horn and horn size

The length of the connection line of the 4.3.6 control box and the frame is 5M

Contact:Shanghai Wind Automation Equipment Co.,Ltd
Email: emily@motor-machinery.com
Skype: motor.machinery
Mobile: +86-18067425780
Website: http://www.motor-machinery.com; http://www.statorwindingmachine.com
