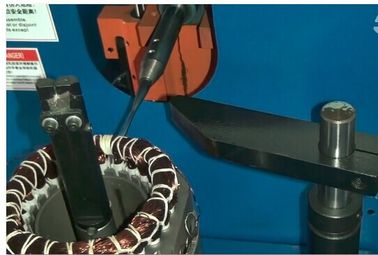

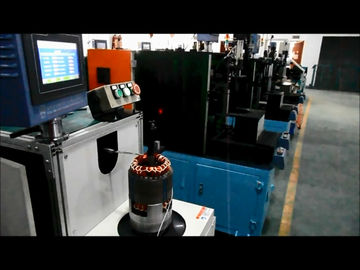

Stator Coil Single Side Lacing Coils Binding Machine Stator Assembly WIND-100-CL

Stator Coil Single Side Lacing Coils Binding Machine Stator Assembly WIND-100-CL
Stator Coil Single Side Lacing Coils Binding Machine Stator Assembly WIND-100-CL Stator Coil Single Side Lacing Coils Binding Machine Stator Assembly WIND-100-CL

Large Image :  Stator Coil Single Side Lacing Coils Binding Machine Stator Assembly WIND-100-CL Get Best Price

Product Details:
Place of Origin: stator assembly China machine Phase coil insertion
Brand Name: Wind Automation
Model Number: WIND-100-CL Stator assembly single side lacing
Contact Now
Detailed Product Description

Stator Coil Single Side Lacing Coils Binding Machine Stator Assembly WIND-100-CL Parameter:
Thickness of stator lamination: 10mm-100mm
Min stator ID: Φ 35mm

Max coil height: 40mm
Max outer diameter of stator: Φ 160mm
Lacing speed: around 0.7s per slot
Power supply Input: 220V/50Hz,60Hz
Air pressure: 0.5 to 0.8MPa
Dimension: 1000mm × 600mm × 1150mm
Weight: ≈ 600kg
