Stator Winding And Insertion Machine Install Wedge And Coils For Concentric Winding

Stator Winding And Insertion Machine Install Wedge And Coils For Concentric Winding
Stator Winding And Insertion Machine Install Wedge And Coils For Concentric Winding Stator Winding And Insertion Machine Install Wedge And Coils For Concentric Winding Stator Winding And Insertion Machine Install Wedge And Coils For Concentric Winding

Large Image :  Stator Winding And Insertion Machine Install Wedge And Coils For Concentric Winding Get Best Price

Product Details:
Place of Origin: Chinese machine for producing electric motor
Brand Name: Wind Automation
Certification: concentric winding stator making machine
Model Number: winding and wedge inserting machine
Payment & Shipping Terms:
Minimum Order Quantity: 1PC Winding insertion machine
Delivery Time: Install and wedge coils for induction motor 45 days
Contact Now
Detailed Product Description

Stator winding and insertion machine install wedge and coils for concentric winding Advantages:

With servo system install winding and wedge



Technical parameter:

Thickness of stator lamination: 8mm-125mm
Min stator ID: Φ 30mm
Max outer diameter of stator: Φ 160mm
Max winding feeding rate: ≤ 80%
Input: 380V/ 50Hz
Air pressure: 0.5-0.8MPa
Power: 3.5KW
Machine productivity: 400pcs/ 8 hours
Dimension: 1800mm × 650mm × 1700 mm
Weight: ≈ 1000kg



Video:

https://vimeo.com/108425117



Photo:

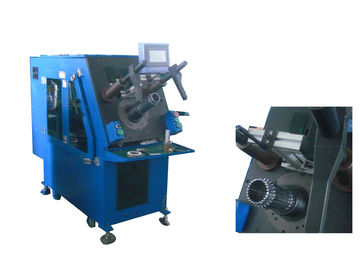

Stator Winding And Insertion Machine Install Wedge And Coils For Concentric Winding 0



Contact:Shanghai Wind Automation Equipment Co.,Ltd

Email:emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-18067425780

Website: www.motor-machinery.com;www.coilswinding.com
